Explore sorters weaknesses with ground-truth comparison

Here a synthetic dataset will demonstrate some weaknesses.

Standard weaknesses :

• not all units are detected

• a unit is detected, but not all of its spikes (false negatives)

• a unit is detected, but it detects too many spikes (false positives)

Other weaknesses:

• detect too many units (false positive units)

• detect units twice (or more) (redundant units = oversplit units)

• several units are merged into one units (overmerged units)

To demonstrate this the script generate_erroneous_sorting.py generates a ground truth sorting with 10 units. We duplicate the results and modify it a bit to inject some “errors”:

• unit 1 2 are perfect

• unit 3 4 have medium agreement

• unit 5 6 are overmerged

• unit 7 is oversplit in 2 parts

• unit 8 is redundant 3 times

• unit 9 is missing

• unit 10 has low agreement

• some units in the tested data do not exist at all in GT (15, 16, 17)

Import

import matplotlib.pyplot as plt

from spikeinterface.comparison import compare_sorter_to_ground_truth
import spikeinterface.widgets as sw

# local file
from generate_erroneous_sorting import generate_erroneous_sorting

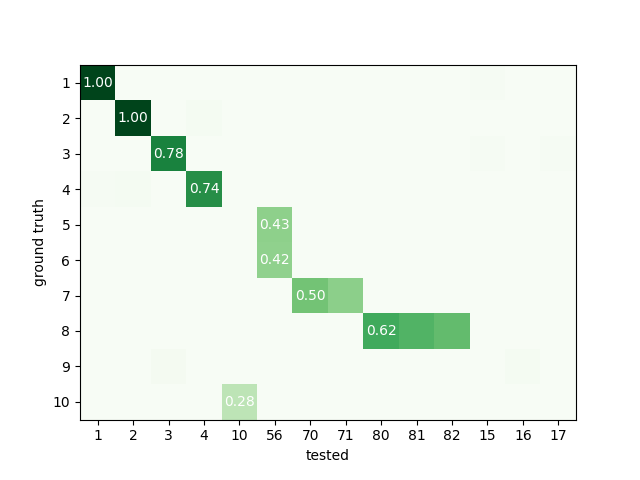

Here is the agreement matrix

sorting_true, sorting_err = generate_erroneous_sorting()
comp = compare_sorter_to_ground_truth(sorting_true, sorting_err, exhaustive_gt=True)
sw.plot_agreement_matrix(comp, ordered=False)

<spikeinterface.widgets.comparison.AgreementMatrixWidget object at 0x7b1498213cb0>

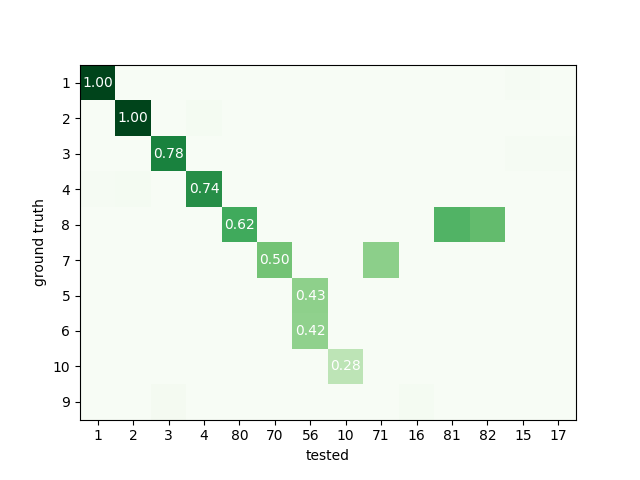

Here is the same matrix but ordered It is now quite trivial to check that fake injected errors are here.

sw.plot_agreement_matrix(comp, ordered=True)

<spikeinterface.widgets.comparison.AgreementMatrixWidget object at 0x7b1463d2d090>

Here we can see that only Units 1 2 and 3 are well detected with ‘accuracy’>0.75

print("well_detected", comp.get_well_detected_units(well_detected_score=0.75))

well_detected [np.int64(1), np.int64(2), np.int64(3)]

Here we can explore “false positive units” units that do not exists in ground truth

print("false_positive", comp.get_false_positive_units(redundant_score=0.2))

false_positive [np.int64(15), np.int64(16), np.int64(17)]

Here we can explore “redundant units” units that do not exists in ground truth

print("redundant", comp.get_redundant_units(redundant_score=0.2))

redundant [np.int64(71), np.int64(81), np.int64(82)]

Here we can explore “overmerged units” units that do not exists in ground truth

print("overmerged", comp.get_overmerged_units(overmerged_score=0.2))

overmerged [np.int64(56)]

Here we can explore “bad units” units that have a mix of several possible errors.

print("bad", comp.get_bad_units())

bad [np.int64(10), np.int64(56), np.int64(71), np.int64(81), np.int64(82), np.int64(15), np.int64(16), np.int64(17)]

Here is a convenient function to summarize everything.

comp.print_summary(well_detected_score=0.75, redundant_score=0.2, overmerged_score=0.2)


plt.show()

SUMMARY
-------
GT num_units: 10
TESTED num_units: 14
num_well_detected: 3
num_redundant: 3
num_overmerged: 1
num_false_positive_units 3
num_bad: 8
